Intelligent Dimming Solar Flood Light with Automatic Night Control
| Power |
Solar Panel |
Battery |
Lamp Source |
Lumen |
| 70W |
18V/100W Monocrystalline silicon |
12.8V/45AH LiFePo4 Lithium battery |
3030SMD chips |
12600LM±5% |
| 100W |
18V/130W Monocrystalline silicon |
12.8V/60AH LiFePo4 Lithium battery |
3030SMD chips |
18000LM±5% |
| 120W |
36V/150W Monocrystalline silicon |
25.6V/36AH LiFePo4 Lithium battery |
3030SMD chips |
21600LM±5% |
| 130W |
36V/180W Monocrystalline silicon |
25.6V/45AH LiFePo4 Lithium battery |
3030SMD chips |
23400LM±5% |
| 150W |
36V/200W Monocrystalline silicon |
25.6V/75AH LiFePo4 Lithium battery |
3030SMD chips |
27000LM±5% |
Product Description:
The UNIKE IP66 outdoor solar flood light is designed for sites where the lighting equipment must operate in exposed outdoor environments. The light fixture uses a high-pressure die-cast aluminum housing described in the reference specification as corrosion-resistant. Its IP66 protection rating helps prevent dust ingress and protects the equipment against strong water jets when installed according to the manufacturer's instructions.

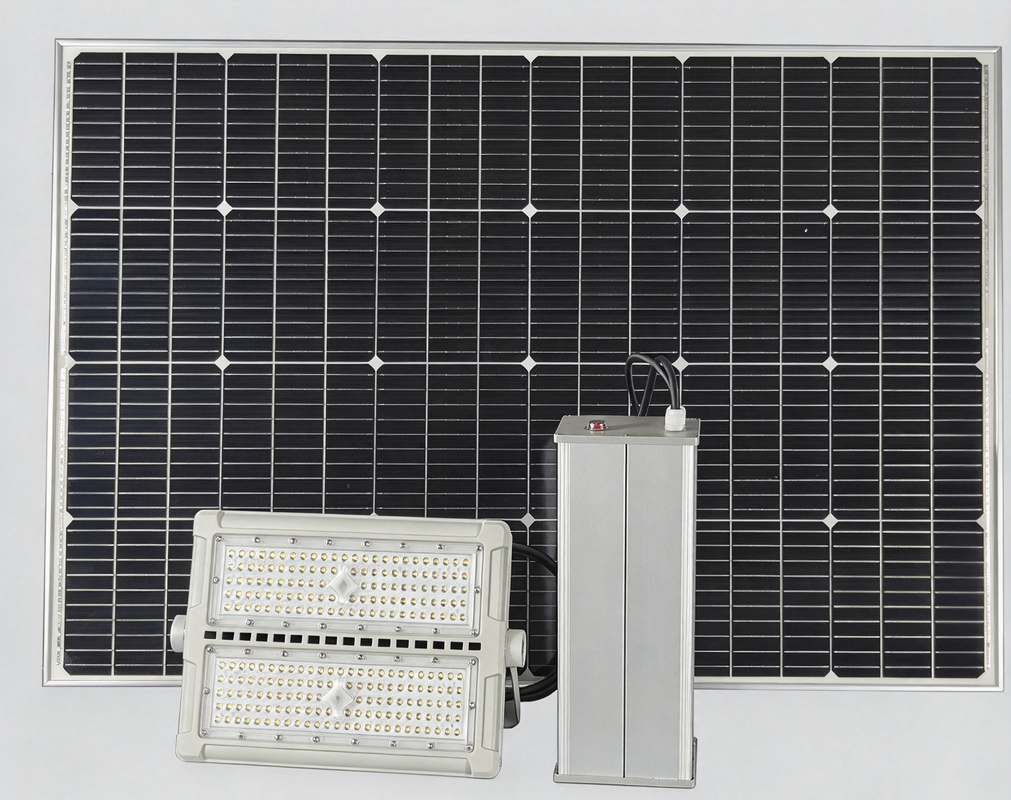

The system uses a split configuration, with the LED floodlight, solar panel and battery box installed as separate components. This layout allows the solar panel to be positioned for suitable sunlight exposure while the light is aimed toward the required illumination area. The independent battery box also gives installers flexibility when arranging the system, provided the cable lengths and mounting conditions follow the approved design.
The LED lighting system is specified at 180 lm/W. The reference configuration combines a monocrystalline solar panel, LiFePO4 energy storage and an intelligent controller for automatic operation and energy-saving dimming. The reference operating duration is 12–14 hours per night, and the system can be configured to provide backup during consecutive rainy days according to the selected battery and panel capacity.
The product is suitable for projects that need a self-contained solar power supply without grid wiring. Before selecting a configuration, buyers should consider local rainfall, sunlight exposure, mounting conditions, required lighting hours and the amount of energy needed during periods of poor weather.
Key Features:
- IP66 protection: Helps protect the equipment against dust and strong water jets.
- Die-cast aluminum housing: Provides a robust structure for outdoor installation.
- Corrosion-resistant design: Intended to support use in exposed environments; suitability for specific corrosive locations should be assessed separately.
- 180 lm/W LED efficacy: Supports energy-efficient illumination.
- Separate battery box: Allows flexible installation of the energy storage component.
- LiFePO4 energy storage: Provides rechargeable power for nighttime lighting.
- Intelligent controller: Supports automatic operation and energy-saving control according to the selected configuration.
Installation & Maintenance:
Install the lamp on a structurally suitable support and position the solar panel where it receives unobstructed sunlight. Secure the battery box and protect cable connections from mechanical damage. IP66 protection does not eliminate the need for correct cable entry, connector sealing and mounting practices.
Clean the panel periodically and inspect the housing, fasteners and wiring. Repair damaged seals or cables promptly in accordance with the manufacturer's service instructions.
Support & Services:
UNIKE provides configuration guidance and technical assistance for outdoor lighting projects. Our team can help assess the installation environment, lighting schedule and solar energy requirements. Requests involving special corrosion exposure or additional protection should be reviewed before the final specification is confirmed.
