Split Solar Flood Light with Separate Battery Box for Outdoor Projects
| Power |
Solar Panel |
Battery |
Lamp Source |
Lumen |
| 70W |
18V/100W Monocrystalline silicon |
12.8V/45AH LiFePo4 Lithium battery |
3030SMD chips |
12600LM±5% |
| 100W |
18V/130W Monocrystalline silicon |
12.8V/60AH LiFePo4 Lithium battery |
3030SMD chips |
18000LM±5% |
| 120W |
36V/150W Monocrystalline silicon |
25.6V/36AH LiFePo4 Lithium battery |
3030SMD chips |
21600LM±5% |
| 130W |
36V/180W Monocrystalline silicon |
25.6V/45AH LiFePo4 Lithium battery |
3030SMD chips |
23400LM±5% |
| 150W |
36V/200W Monocrystalline silicon |
25.6V/75AH LiFePo4 Lithium battery |
3030SMD chips |
27000LM±5% |
Product Description:

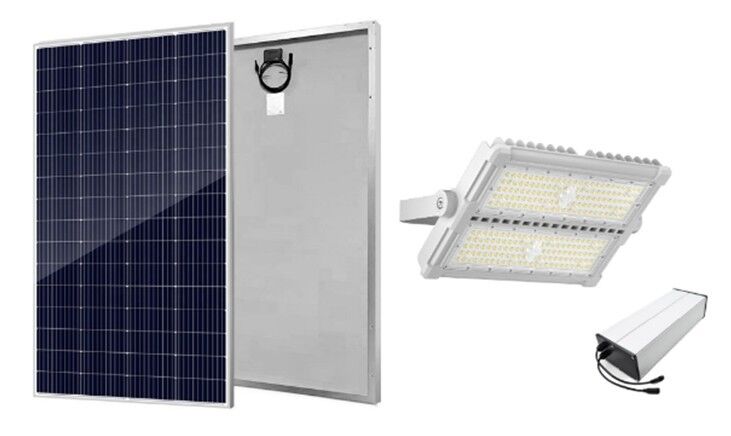

The UNIKE split solar flood light with a separate battery box offers a flexible approach to off-grid outdoor illumination. The system consists of three main components: an LED floodlight, a solar panel and an independent battery box. Instead of placing all components inside one compact housing, this arrangement allows the system layout to be adapted to the installation environment.
The separate design is especially useful when the best position for sunlight collection differs from the ideal position for illumination. The solar panel can be installed in an open, sun-exposed location, while the floodlight can be aimed at a yard, access road, building exterior or work area. The battery box can be mounted in a suitable accessible location, subject to cable length, mounting requirements and the approved system design.
The product is designed around 180 lm/W LED lighting efficiency, a high-efficiency monocrystalline solar panel and a rechargeable LiFePO4 battery. An intelligent controller manages charging and lighting operation, while battery management protection helps safeguard the storage system. The reference configuration supports 12–14 hours of lighting per night and can be configured for backup during consecutive rainy days.
With IP66 protection and a die-cast aluminum light housing, this split solar floodlight is suitable for outdoor projects that need independent power and adaptable component placement. Panel power, battery capacity and other system parameters can be reviewed for individual projects rather than assuming one fixed configuration suits every site.
Key Features:
- Three-part split design: Separate lamp, solar panel and battery box allow flexible component placement.
- Independent energy storage: The battery box can be positioned to suit the approved installation layout.
- 180 lm/W LED efficacy: Supports energy-conscious outdoor lighting design.
- LiFePO4 battery technology: Provides rechargeable energy storage for recurring nighttime operation.
- Intelligent controller: Supports automatic lighting and energy management according to the selected configuration.
- IP66-rated outdoor design: Helps protect the system against dust and strong water jets.
- Custom system sizing: Solar panel and battery capacity can be selected according to project conditions.
Installation & Maintenance:
Plan the positions of the panel, lamp and battery box before installation. Ensure the solar panel receives direct sunlight, the light has a clear beam path and the battery box is securely mounted. Use suitable outdoor-rated cables and connectors, and follow the approved wiring diagram and polarity requirements.
Inspect mounting brackets and cable connections periodically. Clean the panel surface and keep surrounding vegetation or new structures from shading it. Maintenance should be performed with the system isolated according to the manufacturer's instructions.
Support & Service:
UNIKE can provide product configuration guidance, wiring information and installation recommendations for qualified installers and project buyers. We can discuss the required lighting duration, panel orientation, battery capacity and operating profile to help match the system to the site. OEM requests, product labeling and configuration changes are subject to technical review and order requirements.
FAQ:
Q: What is the luminous efficacy of this solar floodlight?
A: The product is specified at 180 lm/W. Actual system performance should be confirmed for the selected configuration.
Q: Is the battery integrated into the lamp?
A: No. This is a split solar lighting system with a separate battery box.
Q: Does it require grid electricity?
A: It is designed to operate using solar energy stored in its battery, without a normal grid power connection.
Q: Is the light waterproof?
A: Yes, it is rated IP66 for outdoor environments.
Q: What is the warranty period?
A: Yes. Different panel and battery configurations can be discussed according to your project requirements.
Q: Where is the solar floodlight manufactured?
A: The garden light is manufactured in China.
Q: What is the minimum order quantity for the solar garden light?
A: The minimum order quantity is 1.
Q: What are the payment terms accepted for purchasing these solar garden light?
A: The accepted payment terms are L/C, D/A, D/P, T/T, Western Union, and .
