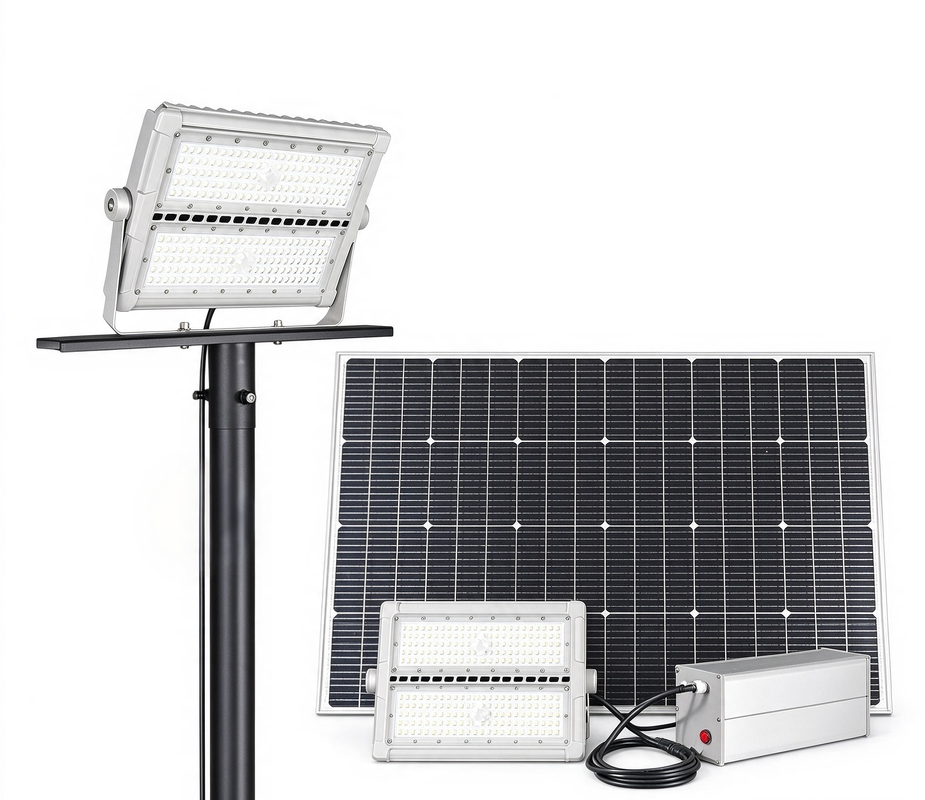

Intelligent Dimming Solar Flood Light with Automatic Night Control
| Power |
Solar Panel |
Battery |
Lamp Source |
Lumen |
| 70W |
18V/100W Monocrystalline silicon |
12.8V/45AH LiFePo4 Lithium battery |
3030SMD chips |
12600LM±5% |
| 100W |
18V/130W Monocrystalline silicon |
12.8V/60AH LiFePo4 Lithium battery |
3030SMD chips |
18000LM±5% |
| 120W |
36V/150W Monocrystalline silicon |
25.6V/36AH LiFePo4 Lithium battery |
3030SMD chips |
21600LM±5% |
| 130W |
36V/180W Monocrystalline silicon |
25.6V/45AH LiFePo4 Lithium battery |
3030SMD chips |
23400LM±5% |
| 150W |
36V/200W Monocrystalline silicon |
25.6V/75AH LiFePo4 Lithium battery |
3030SMD chips |
27000LM±5% |
Product Description:
The UNIKE intelligent dimming solar flood light is designed to provide automatic outdoor illumination while managing the energy stored in its battery. For an off-grid lighting system, effective power management is important because the available solar energy changes with weather, season and installation location.
The reference controller supports automatic dusk-to-dawn switching and intelligent energy-saving operation. It also specifies five dimming modes during the night and one morning mode. Depending on the selected configuration, the controller can adjust lamp power according to the battery's discharge voltage, helping balance illumination requirements with the energy remaining in storage.
The system uses a separate solar panel, LED lamp and battery box, providing flexibility when arranging the components on site. Its LED lighting is specified at 180 lm/W, while the reference configuration uses a monocrystalline solar panel and a LiFePO4 battery with BMS protection. Together, these components support a solar lighting system designed for regular nighttime operation without a conventional grid connection.
The reference operating schedule is 12–14 hours per night, with backup capability during consecutive rainy days when the panel, battery and lighting schedule are appropriately matched. The IP66-rated design is intended for outdoor use. Buyers can discuss system sizing according to required illumination hours, local sunlight conditions and project operating priorities.
Applications:
This product can illuminate commercial yards, farm facilities, warehouses, building perimeters, remote access areas and outdoor storage sites. It is especially useful where lighting demand changes during the night and energy management is important for maintaining operation.
For projects requiring specific brightness levels at different times, the control schedule should be reviewed before ordering to confirm that the selected controller supports the intended operating profile.
Key Features:
- Automatic dusk-to-dawn operation: Turns the light on and off according to the configured ambient-light control.
- Nighttime dimming modes: The reference controller specifies five night modes and one morning mode.
- Battery-aware power management: Helps adapt lamp power to battery discharge conditions.
- 180 lm/W LED efficacy: Supports efficient lighting output.
- Separate battery box: Provides flexibility for component placement and maintenance access.
- LiFePO4 battery with BMS: Provides energy storage and battery management protection.
- IP66 outdoor protection: Helps protect the system against dust and strong water jets.
Support & Service:
UNIKE can assist with controller selection, dimming-profile discussions and solar system sizing. We can help buyers evaluate expected operating hours, nighttime lighting requirements and rainy-day backup needs. Technical functions should be confirmed against the controller selected for the order.
FAQ:
Q: What is the luminous efficacy of this solar floodlight?
A: The product is specified at 180 lm/W. Actual system performance should be confirmed for the selected configuration.
Q: Is the battery integrated into the lamp?
A: No. This is a split solar lighting system with a separate battery box.
Q: Does it require grid electricity?
A: It is designed to operate using solar energy stored in its battery, without a normal grid power connection.
Q: Is the light waterproof?
A: Yes, it is rated IP66 for outdoor environments.
Q: What is the warranty period?
A: Yes. Different panel and battery configurations can be discussed according to your project requirements.
Q: Where is the solar floodlight manufactured?
A: The garden light is manufactured in China.
Q: What is the minimum order quantity for the solar garden light?
A: The minimum order quantity is 1.
Q: What are the payment terms accepted for purchasing these solar garden light?
A: The accepted payment terms are L/C, D/A, D/P, T/T, Western Union, and .
