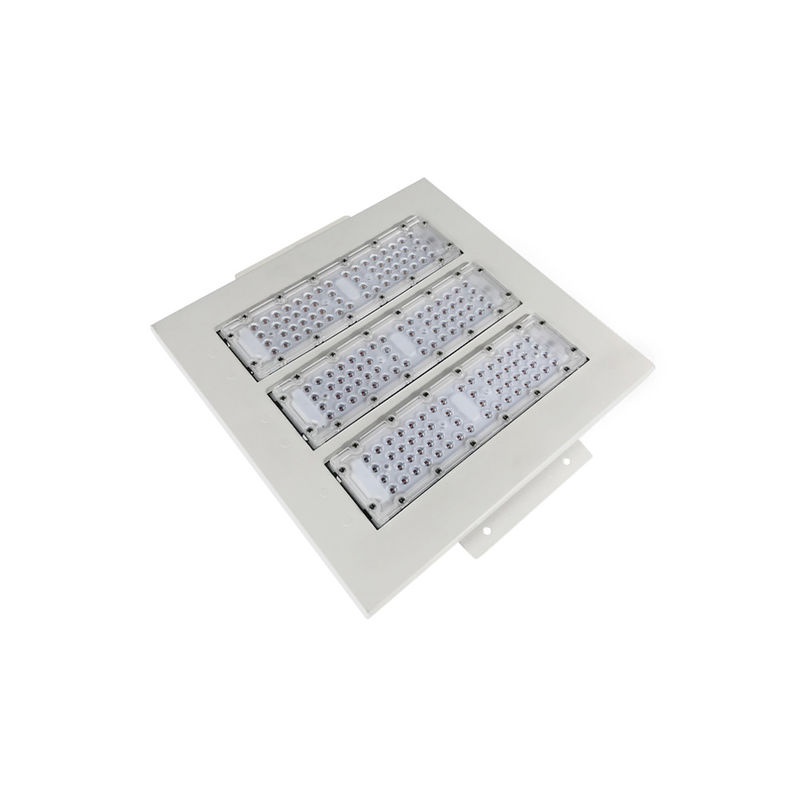

Dimmable LED Canopy Light with 0-10V DALI PWM Control IP65
| Power |
50W |
100W |
150W |
200W |
| Module Qty |
1 Module |
2 Module |
3 Module |
4 Module |
| LED Qty(pcs) |
60pcs |
120pcs |
180pcs |
240pcs |
| LED Type |
2835/3030 SMD |
2835/3030 SMD |
2835/3030 SMD |
2835/3030 SMD |
| Luminous Flux |
135~140lm/W |
135~140lm/W |
135~140lm/W |
135~140lm/W |
| Lumen |
6750lm±5% |
13500lm±5% |
20250lm±5% |
27000lm±5% |
| Lamp Size |
194*350*115mm |
280*350*115mm |
366*350*115mm |
452*350*115mm |
Product Description:
The UNIKE UNK-CL-A Dimmable LED Canopy Light is designed for commercial lighting projects that require flexibility beyond basic on-and-off operation. Using Lumileds 2835 SMD LEDs with a specified luminous efficacy of 140 lm/W, the fixture combines efficient illumination with optional control features for gas stations, covered parking areas, and other commercial facilities.
Depending on the selected driver and control configuration, the fixture can support 0–10V dimming, DALI, PWM signal control, timing, and dimmable operation. These options give project designers the ability to specify compatible lighting-control arrangements for different operating schedules. Actual functionality depends on the driver, control system, and configuration selected, so compatibility should be confirmed before purchase.
The series is available in 50W, 80W, 100W, 120W, 150W, and 200W versions, with 60°, 90°, and 70° × 140° beam-angle options. Its aluminum alloy housing and PC lens are paired with IP65 protection and IK08 impact resistance, making it suitable for appropriate commercial canopy installations.
With input voltage of 100–277V AC at 50/60Hz, the UNK-CL-A provides a flexible platform for lighting projects with different electrical and control requirements.
Features:
- Optional Intelligent Lighting Controls: Available 0–10V, DALI, PWM signal, timing, and dimming functions help support compatible lighting-management systems.
- Flexible Project Configuration: Multiple wattages, color temperatures, and beam angles allow the fixture to be specified for different commercial layouts.
- Efficient LED Technology: Lumileds 2835 SMD LEDs and 140 lm/W specified efficacy support energy-conscious commercial lighting design.
Applications:
- Smart petrol stations: Optional dimming and timing functions can support lighting schedules suited to station opening hours and operating needs.
- Commercial parking facilities: Suitable for covered vehicle areas where lighting output may need to be coordinated with a compatible control system.
- Retail and building canopies: Can be used in covered entrances and commercial shelters where controlled LED lighting is required.
Installation & Maintenance:
Confirm the control protocol, driver model, wiring diagram, and controller compatibility before installation. The fixture should be installed by a qualified electrician, with power isolated during wiring and servicing. Ensure the selected dimming system is designed for the specified driver; control protocols are not automatically interchangeable. Inspect the connections, mounting hardware, and optical surface regularly, and follow the supplied instructions for cleaning and maintenance.
FAQ:
Q: What is the brand name of the LED Canopy Light?
A: The brand name is UNIKE.
Q: What power options are available?
A: 50W, 80W, 100W, 120W, 150W, 200W.
Q: What driver brands are supported?
A: UNIKE standard, optional Brand driver such as SOSEN, Lifud, Mean Well.
Q: Does every UNK-CL-A fixture support all dimming protocols?
A: Not necessarily. Dimming functions depend on the selected driver and product configuration. Confirm the required protocol before ordering.Q: What is the warranty period?
A: 3 years and 5 years options.
Q: Where is the LED Canopy Light manufactured?
A: The LED Canopy Light is manufactured in China.
Q: What is the minimum order quantity for the solar garden light?
A: The minimum order quantity is 1.
Q: What are the payment terms accepted for purchasing these solar garden light?
A: The accepted payment terms are L/C, D/A, D/P, T/T, Western Union, and .
