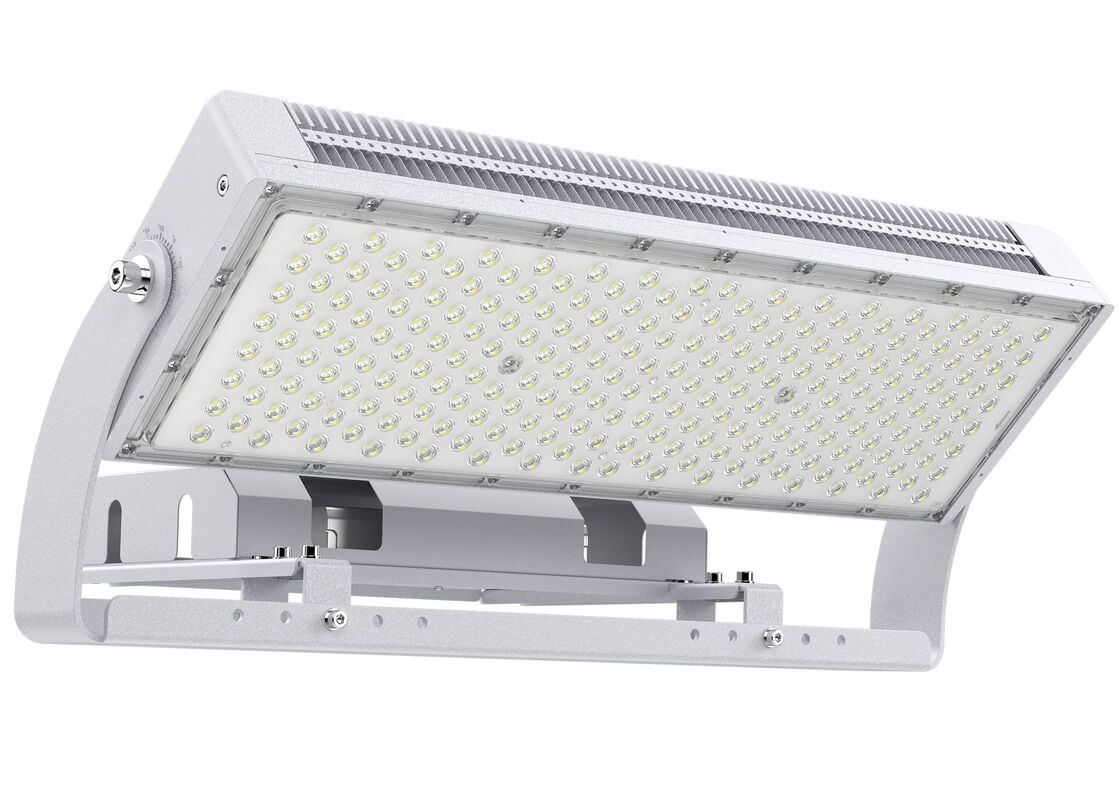

600W Modular LED Flood Light High Mast Sports Lighting Fixture IP66 Waterproof
| Model |
UNK-HM600C |
UNK-HM1200C |
UNK-HM1800C |
| Power |
600W |
1200W |
1800W |
| Light Source |
OSRAM Ceramics 3737 SMD / TYF EMC 5050 SMD LED |
| Light Efficiency |
140Im/W, 150Im/W, 160Im/W±10% |
| Total Lumen |
84000Im~96000Im±10% |
168000Im~192000Im±10% |
252000Im~288000Im±10% |
| Lens Angle |
10°/15°/20°/40°/60°/90° optional |
| Lamp Size |
632*162*282mm(without driver box)
632*359*282mm(with driver box) |
686*347*575mm(without driver box)
686*694*575mm(with driver box) |
686*347*636mm(without driver box)
632*622*636mm(with driver box) |
Product Description:
UNIKE HMC Series 600W Modular LED Flood Light is a high-performance lighting fixture developed for outdoor applications requiring powerful illumination and precise optical control. Designed with a single 600W lighting module, this LED flood light provides an efficient solution for small and medium sports facilities, industrial areas, and commercial outdoor spaces.
Unlike conventional high-power floodlights with fixed structures, the modular design of this product allows easier installation, maintenance, and future upgrades. The independent LED module integrates advanced thermal management technology, ensuring stable operation even during long working hours.
Powered by premium TYF EMC 5050 SMD LED or OSRAM Ceramic 3737 SMD technology, the 600W LED flood light achieves 140-160lm/W luminous efficiency and provides up to 96,000 lumens output. This makes it an ideal replacement solution for traditional metal halide lighting systems, significantly reducing energy consumption while maintaining excellent brightness.
The fixture supports multiple optical beam angles including 10°, 15°, 20°, 40°, 60°, and 90°. Project designers can select different lenses according to mounting height and lighting requirements. Narrow beam options are suitable for high mast poles, while wider beams are suitable for open areas requiring wider illumination coverage.
The independent driver box design separates heat sources and improves electrical safety. The die-cast aluminum alloy structure provides excellent heat dissipation, while IP66 waterproof protection and IK08 impact resistance ensure reliable performance in outdoor environments.
For smart lighting applications, the HMC Series supports optional dimming systems including 0-10V, PWM, TIMER, DALI-2, and DMX-RDM, providing flexible control solutions for energy-saving projects.
Applications:
The 600W Modular LED Flood Light is widely used in:
- Small football fields and training grounds
- Basketball courts and tennis courts
- Industrial yards and warehouses
- Outdoor event areas and public spaces
- Building facades and architectural lighting projects
Its compact modular structure makes it especially suitable for projects requiring high efficiency with flexible installation options.
Support and Services:
UNIKE offers complete project support including:
- Lighting design assistance
- Product configuration recommendation
- Technical documentation and installation guidance
- Warranty and replacement support
- Customized OEM/ODM solutions
FAQ:
Q: What is the brand name of the LED Flood lights?
A: The brand name is UNIKE.
Q: What power options are available?
A: 600W, 1200W and 1800W.
Q: Does it support dimming control?
A: Yes, 0-10V, PWM, DALI-2, and DMX-RDM are optional.
Q: Can the beam angle be customized?
A: Yes, 10°, 15°, 20°, 40°, 60°, and 90° options are available..
Q: Which driver brand is used?
A: The standard driver is INVENTRONICS.
Q: What is the warranty period?
A: UNIKE provides a 5 year warranty.
Q: Where is the LED flood light manufactured?
A: The LED flood light is manufactured in China.
Q: What is the minimum order quantity for the solar garden light?
A: The minimum order quantity is 1.
Q: What are the payment terms accepted for purchasing these solar garden light?
A: The accepted payment terms are L/C, D/A, D/P, T/T, Western Union, and .
