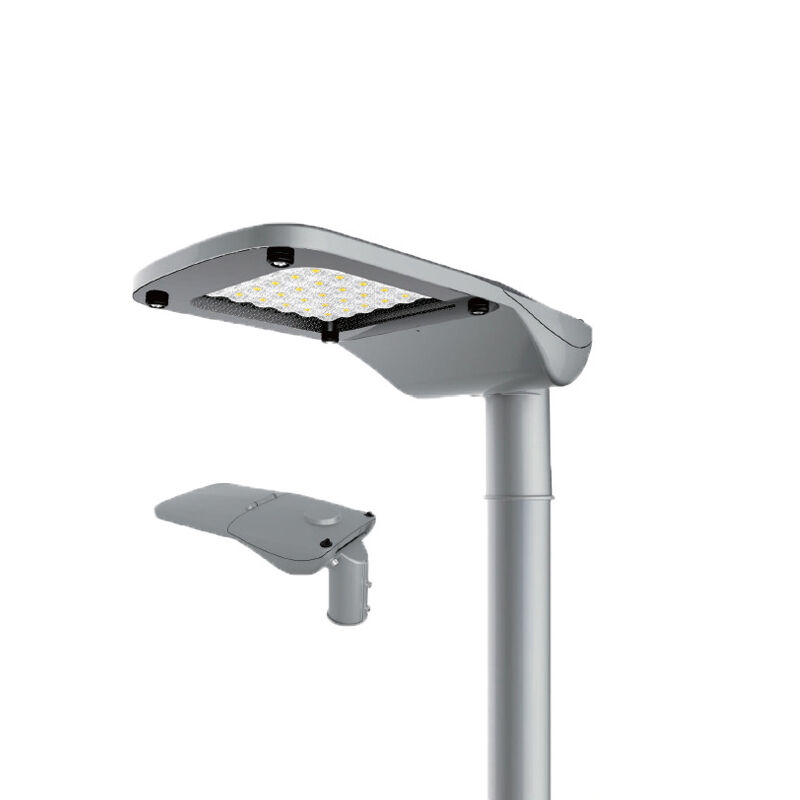

LED Street Light AC Power for Road with Glass Cover Luminarias

Product Details

Place of Origin: China

Brand Name: UNIKE

Certification: rohs, ce, FCC, LVD, SASO, Saa

Model Number: UNK-SL-H-100w

Payment & Shipping Terms

Minimum Order Quantity: 100~500 pieces,1 sample supported

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Get Best Price
Product Details
Highlight:

LED street light with glass cover

,

AC power road luminarias

,

smart street light luminarias

Lamp Luminous Flux(lm):
7500~21000lm
Lamp Luminous Efficiency(lm/w):
135~155lm/w
Power Factor:
>0.95
IP Rating:
IP65
Applications:
Urban Streets, Pedestrian Walkways And Crossings, Residential Areas, Highways And Expressways, Parks And Recreation Areas, Commercial Districts And Parking Lots
Power:
50w, 60w, 70w, 80w, 100w, 120w, 150w
Lamp Body Material:
Aluminum Alloy
LED Chip:
SMD 3030 LUMILEDS
Lamp Luminous Flux(lm):
7500~21000lm
Lamp Luminous Efficiency(lm/w):
135~155lm/w
Power Factor:
>0.95
IP Rating:
IP65
Applications:
Urban Streets, Pedestrian Walkways And Crossings, Residential Areas, Highways And Expressways, Parks And Recreation Areas, Commercial Districts And Parking Lots
Power:
50w, 60w, 70w, 80w, 100w, 120w, 150w
Lamp Body Material:
Aluminum Alloy
LED Chip:
SMD 3030 LUMILEDS
Product Description

LED Street Light AC Power for Road with Glass Cover Luminarias

power 50w 60w 70w 80w 100w 120w 150w
Lumens 7000±10% 8400±10% 9800±10% 11200±10% 14000±10% 16800±10% 21000±10%
Interface
size
60mm 60mm 60mm 60mm 60mm 60mm 60mm
LED Qty
(pcs)
96pcs 144pcs 144pcs 216pcs 216pcs 288pcs 288pcs
Lamp
Size/mm
483*230*127 548*230*127 598*257*129
Voltage Universal wide voltage AC100~277V, 50/60Hz
Beam Angle TYPE 2/3/4/5
LED chip Quality Brand Chips Lumileds/CREE 3030 SMD optional

The advantages and components of street lamps:



Core advantage
High efficiency and energy conservation
High luminous efficiency: The luminous efficiency of LED is much higher than that of traditional light sources (currently reaching over 130-200 lumens per watt), meaning that less electricity can produce more light.
Directional lighting: LED emits light in a single direction, eliminating the need for reflectors, resulting in higher light energy utilization and less waste.
The comprehensive energy-saving rate can reach 50% to 70%, and the electricity cost is significantly reduced.
Longevity
The lifespan of high-quality LED street lights can reach 50,000 to 100,000 hours (approximately 10-20 years), which is 3 to 5 times that of high-pressure sodium lamps. This significantly reduces the frequency and cost of maintenance and replacement.
Good color rendering property
The color rendering index of LED is high, and the light is closer to natural light, which can more accurately reproduce the colors of objects. This improves the visual clarity of night roads and enhances the safety of pedestrians and drivers.
Quick response, easy for intelligent control
LED can be turned on and off instantly without any delay. This makes it highly suitable for integration with intelligent control systems, enabling functions such as dimming, on-demand lighting, and time-based control, thereby achieving greater energy savings.
Environmental protection

It does not contain harmful substances such as mercury, and its waste has a low impact on the environment. At the same time, due to its energy-saving feature, it indirectly reduces the carbon emissions caused by power generation.
Flexible design
The structure design of the lamps is more compact and lightweight, with a modern and elegant appearance.
Main components
LED light source module: The core part, consisting of multiple LED chips integrated onto a substrate.
Power supply: Converts the alternating current from the power grid into the working current required by the LED, and is a key component that determines the stability and lifespan of the lighting fixture.
Heat sink: Since LEDs are sensitive to temperature, an efficient heat dissipation system (typically made of aluminum fins) is the key to ensuring light output and lifespan.
Optical lenses/reflectors: Perform secondary light distribution to ensure that the light spots are evenly distributed on the road surface, in accordance with road lighting standards, and avoid glare.
Lamp housing: Provides physical protection and meets the protection level, usually IP65 or higher, for dust and water resistance.

FAQ:

What is the brand name of this smart street light product?

The brand name of this smart street light product is UNIKE.

What is the model number of this smart street light product?

The model number of this smart street light product is UNK-SL-H-50w.

What certifications does this smart street light product have?

This smart street light product has the following certifications: rohs, ce, FCC, LVD, SASO, Saa.

Where is this smart street light product made?

This smart street light product is made in China.

What is the minimum order quantity for this smart street light product and what is the price?

The minimum order quantity for this smart street light product is 2 and the price is $45.27.

What are the available payment terms for this smart street light product?

The available payment terms for this smart street light product are L/C, D/A, D/P, T/T, Western Union, MoneyGram.
