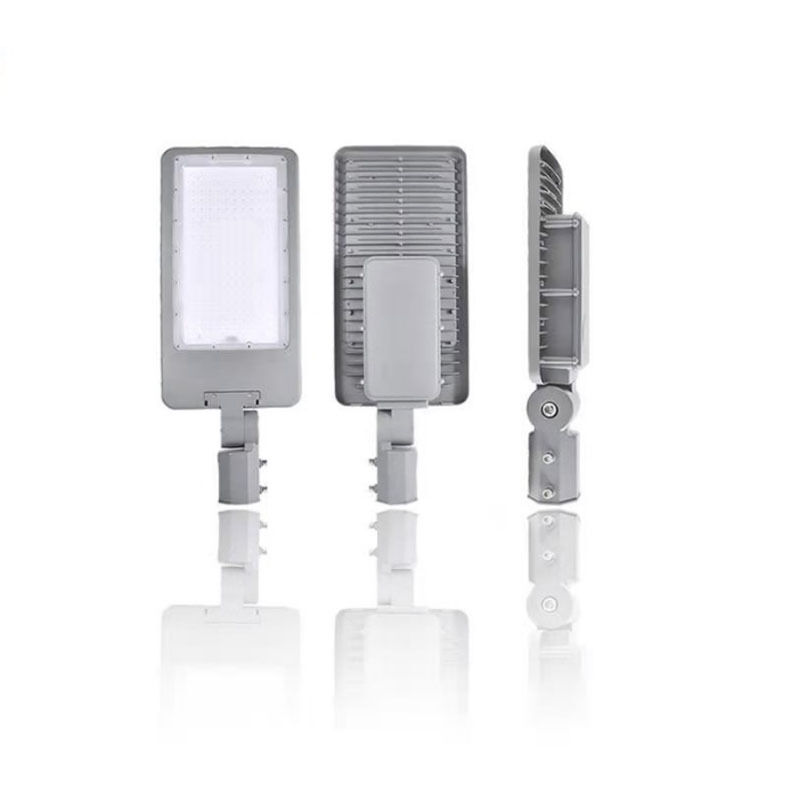

LED Street Light Outdoor Area Parking Lot Main Road Lighting Fixture

Name: LED Street Light Outdoor Area Parking Lot Main Road Lighting Fixture
Brand: Shenzhen UNIKE Technology Limited
SKU: UNK-SL-C3-80w
Price: 60.55 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: UNIKE

Model Number: UNK-SL-C3-80w

Payment & Shipping Terms

Minimum Order Quantity: 100~500 pieces,1 sample supported

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                LED street light for parking lots, outdoor LED lighting fixture, main road LED street light


Warranty:	2 Years/3 Years/5 Years Optional	Lamp Size/mm:	503x169x86-734x300x108
LED Qty:	60pcs-240pcs	Beam Angle:	70°*140° With 30° Polarized
Lumens:	7000lm-28000lm	CCT:	2700-6500K Optional
Luminous Flux:	120-145LM/W	LED Chip:	Lumileds 3030 SMD

Warranty:	2 Years/3 Years/5 Years Optional
Lamp Size/mm:	503x169x86-734x300x108
LED Qty:	60pcs-240pcs
Beam Angle:	70°*140° With 30° Polarized
Lumens:	7000lm-28000lm
CCT:	2700-6500K Optional
Luminous Flux:	120-145LM/W
LED Chip:	Lumileds 3030 SMD

Product Description

LED Street Light Outdoor Area Parking Lot Main Road Lighting Fixture

Key Specifications

Power	Lumens	Interface Size	LED Quantity	Lamp Dimensions (mm)
50W	7000lm	φ50mm	60pcs	503×169×86
60W	8400lm	φ50mm	60pcs	503×169×86
80W	11200lm	φ60mm	120pcs	568×210×88
100W	14000lm	φ60mm	120pcs	568×210×88
120W	16800lm	φ60mm	180pcs	659×250×87
150W	21000lm	φ60mm	180pcs	659×250×87
180W	25200lm	φ60mm	240pcs	734×300×108
200W	28000lm	φ60mm	240pcs	734×300×108

LED Street Light Overview

Street lamps are usually composed of various parts such as lamps, light sources, lamp poles, lamp arms, wires, flanges, and foundation pre-buried parts. Here is a detailed introduction: Lamps: They are an important component of street lamps, used to protect the internal components such as the light source, optical system, and driving power supply. Their shells are usually made of cast aluminum or aluminum alloy, which have good structural strength and protection performance, and can protect the internal components from physical impacts and environmental damage. The light-transmitting cover or protective cover is placed outside the optical lens, and the material is usually high-strength glass or high-transparency PC/PMMA, which can prevent dust, water, insects, etc. from entering.

Technical Specifications

Protection Rating	IP65
Operating Voltage	AC100-277V, 50/60Hz
Color Temperature	2700-6500K (optional)
Beam Angle	70°×140° with 30° polarized
LED Chip	Lumileds 3030 SMD
Luminous Efficacy	120-145 LM/W
Warranty	2 years/3 years/5 years (optional)
Impact Resistance	IK09
Color Rendering Index	Ra80
Smart Function	Photocell Optional

The composition of street lamps

Street lighting fixtures
Light source: This is the core component that emits light for the street lamps. Common types include LED light sources and sodium light sources. LED light sources have advantages such as high efficiency, long lifespan, high luminous efficacy, and fast response speed, and are currently the mainstream choice for street lamps. Sodium lamps have features such as high luminous flux and strong fog penetration, and were widely used in road lighting in the past.
Street LED light source
Light pole: It is used to lift the street lighting fixtures to the required height, typically ranging from 6 to 12 meters or higher. The material is mostly steel (heat-dip coated for corrosion prevention) or aluminum alloy, which has good wind resistance and durability.
Light pole
Lamp arm: This is the component that connects the light pole and the lamp. Its shape and length are determined based on factors such as the installation height of the lamp, the illumination range, and design requirements, enabling the lamp to illuminate the road surface at an appropriate angle.
Light pole arm
Wires: These are used to connect various components of the street lamp, transmitting electrical energy to enable the light source to function properly.
