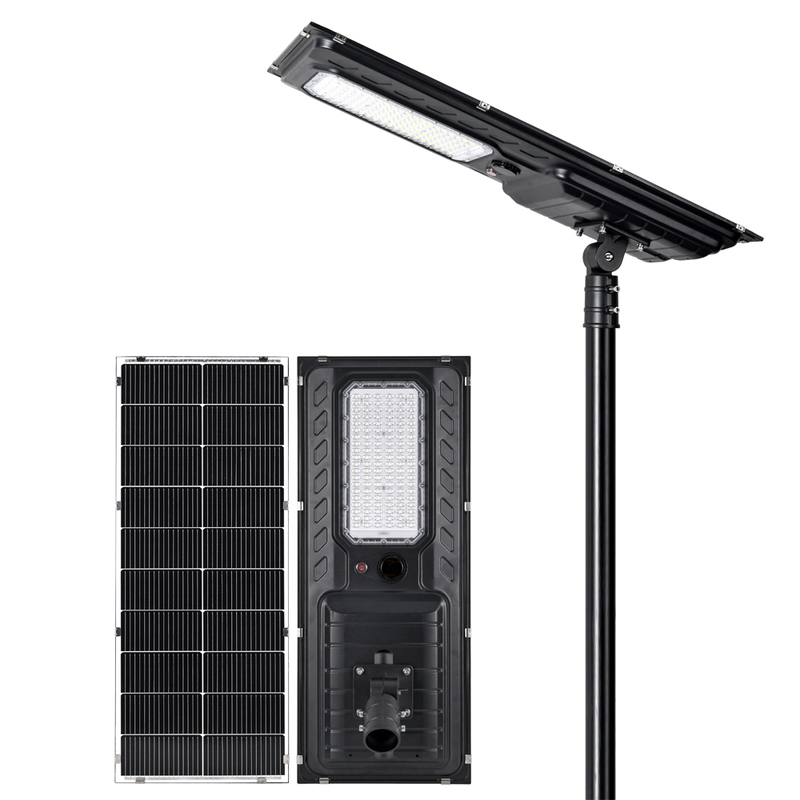

Solar Street Lamp Lithium Battery Commercial LED Solar Street Light

Solar Street Lamp Lithium Battery Commercial LED Solar Street Light

The 9th-generation all-in-one solar street lights, including the 3545 G9, 3965 G9, and 3980 G9 series, combine solar power generation, energy storage, and intelligent control. They are well-suited for various outdoor lighting scenarios, and the following is a detailed product overview.​

1. 3545 G9 Series​
1.1 Key Specifications​
Power Output: 20W​
Solar Panel: 5V/45W, with dimensions of 6773473MM​
Battery: 3.2V/45Ah LiFePO4 battery (144Wh capacity)​
LED Configuration: 60 pieces of 5050SMD LEDs, with a luminous efficacy of 180LM/W, color rendering index (C.R.I) ≥70, and color temperature options of 3000K-6500K​
Optical & Physical Data: Beam angle of 90X150°, lamp size of 681351124MM​
1.2 Core Functions​
Energy Supply: Charging time ranges from 6 to 9 hours; provides 12 hours of lighting per night and can work continuously for 2-3 rainy days.​
Motion Sensing: Detects human movement within a 120° range, switching to full brightness (20W); automatically reduces to 4W after 15 seconds of no human presence.​
Durability: Features IK08 impact resistance and IP65 waterproof/dustproof performance, suitable for operating temperatures between -10℃ and 40℃.​
Longevity: LED lifespan exceeds 54,000 hours; battery supports over 2,500 charge-discharge cycles; solar panel has a service life of 20-25 years.​
Additional Features: Equipped with a remote control and a 180° rotatable bracket.​
1.3 Application Scenarios​
Ideal for rural roads, municipal roads, scenic areas, parks, residential communities, etc.​

2. 3965 G9 Series​
2.1 Key Specifications​
Power Output: 25W​
Solar Panel: 5V/68W, measuring 7973873MM​
Battery: 3.2V/60Ah LiFePO4 battery (192Wh capacity)​
LED Configuration: 90 pieces of 5050SMD LEDs, with a luminous flux of 4,500LM, luminous efficacy of 180LM/W, and C.R.I ≥70​
Physical Size: 801391124MM​
2.2 Core Functions​
Energy & Sensing: Same charging and lighting duration as the 3545 G9 series; motion sensor switches brightness from 25W to 5W after 15 seconds of no human presence.​
Durability & Longevity: Consistent with the 3545 G9 series in terms of impact resistance, waterproof performance, and component lifespans.​
Additional Features: Comes with a remote control, customizable radar sensor, and supports multiple installation methods (pole mounting, roof mounting, wall mounting).​
2.3 Application Scenarios​
Applicable to rural roads, municipal roads, highways, scenic areas, outdoor basketball courts, etc.​

3. 3980 G9 Series​
3.1 Key Specifications​
Power Output: 30W​
Solar Panel: 5V/80W, with dimensions of 9573873MM​
Battery: 3.2V/75Ah LiFePO4 battery (240Wh capacity)​
LED Configuration: 120 pieces of 5050SMD LEDs​
Installation & Size: Recommended mounting distance of 15-20M and height of 5-7M; lamp size of 961391124MM​
3.2 Core Functions​
Energy & Sensing: Matches the 3545 G9 series in charging and lighting duration; motion sensor adjusts brightness from 30W to 6W after 15 seconds of no human presence.​
Durability & Longevity: Same impact resistance, waterproof performance, and component lifespans as the other two series.​
Additional Features: Includes a remote control, customizable radar sensor, and supports multiple installation methods.​
3.3 Application Scenarios​
Suitable for large-area lighting needs, such as highways, scenic areas, large parks, etc.​

4. Common Advantages​
Integrated Design: Combines solar panel, battery, LED lamp, and controller into one unit, simplifying installation and reducing maintenance costs.​
Energy Efficiency: Adopts high-efficiency solar panels and energy-saving LEDs, paired with intelligent dimming, to achieve excellent energy efficiency.​
Eco-Friendliness: Relies on solar energy for power, reducing dependence on traditional grid electricity and lowering carbon emissions.​
Versatile Installation: Supports multiple mounting methods for flexible deployment.​
Warranty: All series come with a 2-year warranty for quality assurance.
