LED Flood Light Outdoor Soccer Stadium Sports Field Lighting 160lm/W

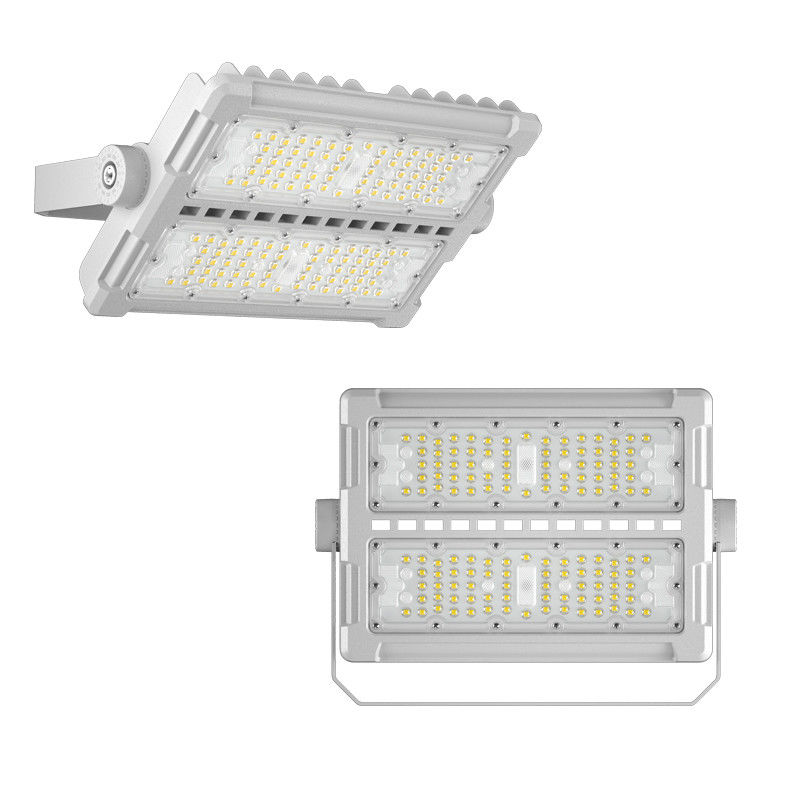

Name: LED Flood Light Outdoor Soccer Stadium Sports Field Lighting 160lm/W
Brand: Shenzhen UNIKE Technology Limited
SKU: UNK-FL-E-50W per module-100w
Price: 45.42 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: UNIKE

Model Number: UNK-FL-E-50W per module-100w

Payment & Shipping Terms

Minimum Order Quantity: 1

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                Outdoor LED Flood Light


Luminous Efficacy:	120~160lm/w±5%	Lamp Chip:	Lumileds 2835/3030 Smd
Color Temperature:	2700-6500K Optional	Input:	AC100~305V, 50/60Hz
Warranty:	2/3/5 Years	Lens Angle:	15°/30°/60° Optional
Lumen:	12000~16000lm	Lamp Size:	239x318x68mm

Luminous Efficacy:	120~160lm/w±5%
Lamp Chip:	Lumileds 2835/3030 Smd
Color Temperature:	2700-6500K Optional
Input:	AC100~305V, 50/60Hz
Warranty:	2/3/5 Years
Lens Angle:	15°/30°/60° Optional
Lumen:	12000~16000lm
Lamp Size:	239x318x68mm

Product Description

LED Flood Light Outdoor Soccer Stadium Sports Field Lighting 160lm/W

Module	Power	Light Efficiency	Lumen	Light Source	Lamp Size
50W module*2	100w	120~160lm/w	12000~16000lm	2835/3030SMD	239x318x68mm
50W module*3	150w	120~160lm/w	18000~24000lm	2835/3030SMD	330x318x71mm
50W module*4	200w	120~160lm/w	24000~32000lm	2835/3030SMD	421x318x71mm
50W module*5	250w	120~160lm/w	30000~40000lm	2835/3030SMD	421x318x71mm
100W module*2	200w	120~160lm/w	24000~32000lm	2835/3030SMD	295x386x77mm
100W module*3	300w	120~160lm/w	36000~48000lm	2835/3030SMD	410x386x81mm
100W module*4	400w	120~160lm/w	48000~64000lm	2835/3030SMD	525x386x77mm
200W module*2	400w	120~160lm/w	48000~64000lm	2835/3030SMD	453x525x82mm
200W module*3	600w	120~160lm/w	72000~96000lm	2835/3030SMD	640x525x82mm
250W module*2	500w	120~155lm/w	60000~77500lm	2835/3030SMD	453x525x82mm
250W module*3	750w	120~155lm/w	90000~116250lm	2835/3030SMD	640x525x82mm
500W module*1	500w	120~155lm/w	60000~77500lm	2835/3030SMD	385x671x88mm
500W module*2	1000w	120~155lm/w	120000~155000lm	2835/3030SMD	685x671x88mm
600W module*1	600w	120~150lm/w	72000~90000lm	2835/3030SMD	385x671x88mm
600W module*2	1200w	120~150lm/w	144000~180000lm	2835/3030SMD	685x671x88mm

Installation steps for the floodlight:

1. Determine the installation location
Select the installation site, check the installation environment, and make sure the power is connected
2. Prepare tools and materials
Tools: electric drills, screwdrivers, wrenches, steel rulers, levels, cable scissors, insulating tape, etc.
Accessories: flood light body, bracket or mounting bracket, screws, expansion bolts, connecting cables, waterproof joints, etc.
3. Install the bracket
Drilling: Depending on the position of the bracket, use an electric drill to punch holes in walls, floors, or other fixed surfaces. Make sure the hole is firmly and accurately positioned.
Fixing the bracket: Fix the bracket by driving expansion bolts or screws into pre-drilled holes.
4. Install a floodlight
Connect the luminaire with the bracket
Adjust the angle: Make sure the light is hitting the area that needs to be illuminated correctly.
Disconnect the power supply
connection
Waterproof treatment: Waterproof treatment is carried out at the cable connection
Check the wiring: Check that all wiring is safe and not loose, and make sure there are no exposed wire sections.
6. Testing
Check the function: After the power is turned on, test whether the flood light is working normally and whether it can provide enough light.
