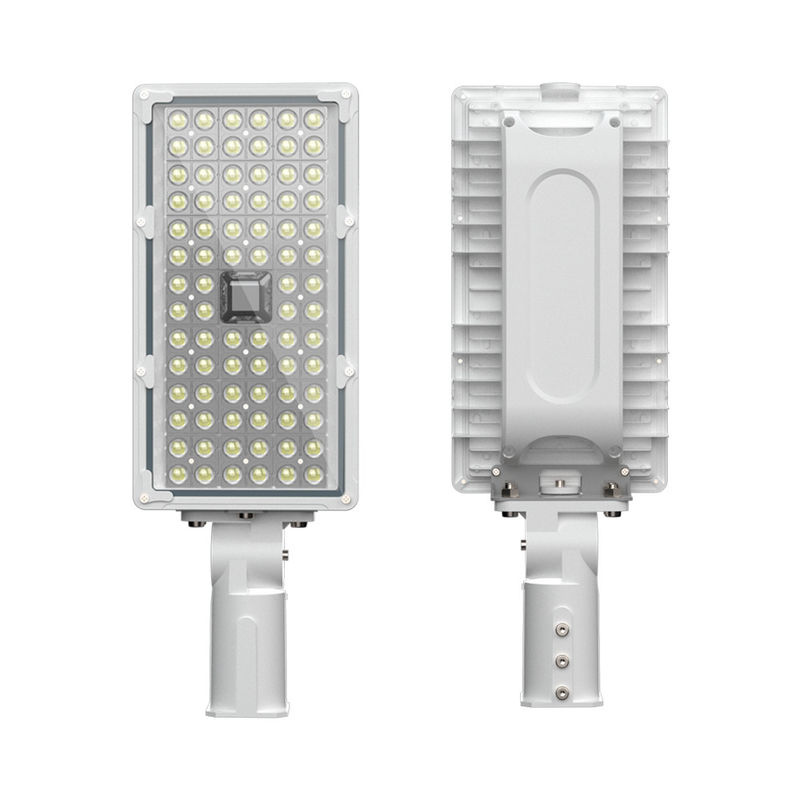

Outdoor Modular LED Street Light Area Lighting Fixtures 250w 500w 750w 800w

Name: Outdoor Modular LED Street Light Area Lighting Fixtures 250w 500w 750w 800w
Brand: Shenzhen UNIKE Technology Limited
SKU: UNK-SL-HM200B
Price: 56.55 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: UNIKE

Model Number: UNK-SL-HM200B

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: $46.55~$67.28

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                800w Modular LED Street Light, 750w  Modular LED Street Light, Outdoor 500w led street light


Product Name:	250W Led Street Light	Material:	Die-cast Aluminum Alloy + PC Lens + Tempered Glass
IP Grade:	IP66 Wateproof	LED Driver:	Famous Brand Power Supply Optional
Lens Angle:	30°/60°/90°/120°/T1/T2/T3 Optional	Protection:	IP66,IK08, 6KV SPD In Built
Light Source:	2835/3030/5050/7070 Lumileds Leds	Light Color:	White/gray/black Optional

Product Name:	250W Led Street Light
Material:	Die-cast Aluminum Alloy + PC Lens + Tempered Glass
IP Grade:	IP66 Wateproof
LED Driver:	Famous Brand Power Supply Optional
Lens Angle:	30°/60°/90°/120°/T1/T2/T3 Optional
Protection:	IP66,IK08, 6KV SPD In Built
Light Source:	2835/3030/5050/7070 Lumileds Leds
Light Color:	White/gray/black Optional

Product Description

Outdoor LED modular street light area lighting fixtures 250w 500w 750w 800w

Power	Light Efficiency	Total Lumen	Light Source
200w	140 lm/w~170 lm/w	28000lm~34000lm	Lumileds 2835 led/Tongyifang 3030 led/Tongyifang 7070 led
250w	135 lm/w~165 lm/w	33750lm~41250lm	Lumileds 2835 led/Tongyifang 3030 led/Tongyifang 7070 led
400w	140 lm/w~170 lm/w	56000lm~68000lm	Lumileds 2835 led/Tongyifang 3030 led/Tongyifang 7070 led
500w	135 lm/w~165 lm/w	67500lm~82500lm	Lumileds 2835 led/Tongyifang 3030 led/Tongyifang 7070 led

The main components of modular street lights:

_{1.LED Light Source Module:}

_{The LED light source module is the core part of the modular street lamp, which has the characteristics of high brightness, low energy consumption and long life. Multiple LED light sources can form a high-power light source module.

2.Power Drive Module:}

_{The power module is responsible for converting the power supply into the voltage and current required for the LEDs. Power modules usually have a constant current function and need to have high efficiency to ensure the stability and reliability of the street lighting system.

3.Control Module:}

_{The control module is responsible for adjusting the working status of the street lamp, which can realize functions such as intelligent dimming, timing switch, and remote control. The intelligent control system can monitor the ambient light or traffic flow in real time through sensors, and automatically adjust the brightness of street lights to save energy.

4.Heat Dissipation Module:}

_{LED light sources generate heat when they work, so an efficient heat dissipation system is required. Modular street lights usually use aluminum alloy radiators to ensure the stable operation of LED light sources.

5.Luminaire housing:}

_{The enclosure should not only provide support, but also have good waterproof and dustproof functions to ensure that the street lights can adapt to various harsh environments. Aluminum alloy shells are often used in modular street lights, which have the characteristics of lightweight, corrosion resistance, and good heat dissipation.

6.Solar module (for solar module street lights):}

_{For solar module street lights, solar panels are one of the optional components. The solar module converts solar energy into electricity, which is supplied with LED light sources.}
